Reference: LS1016G

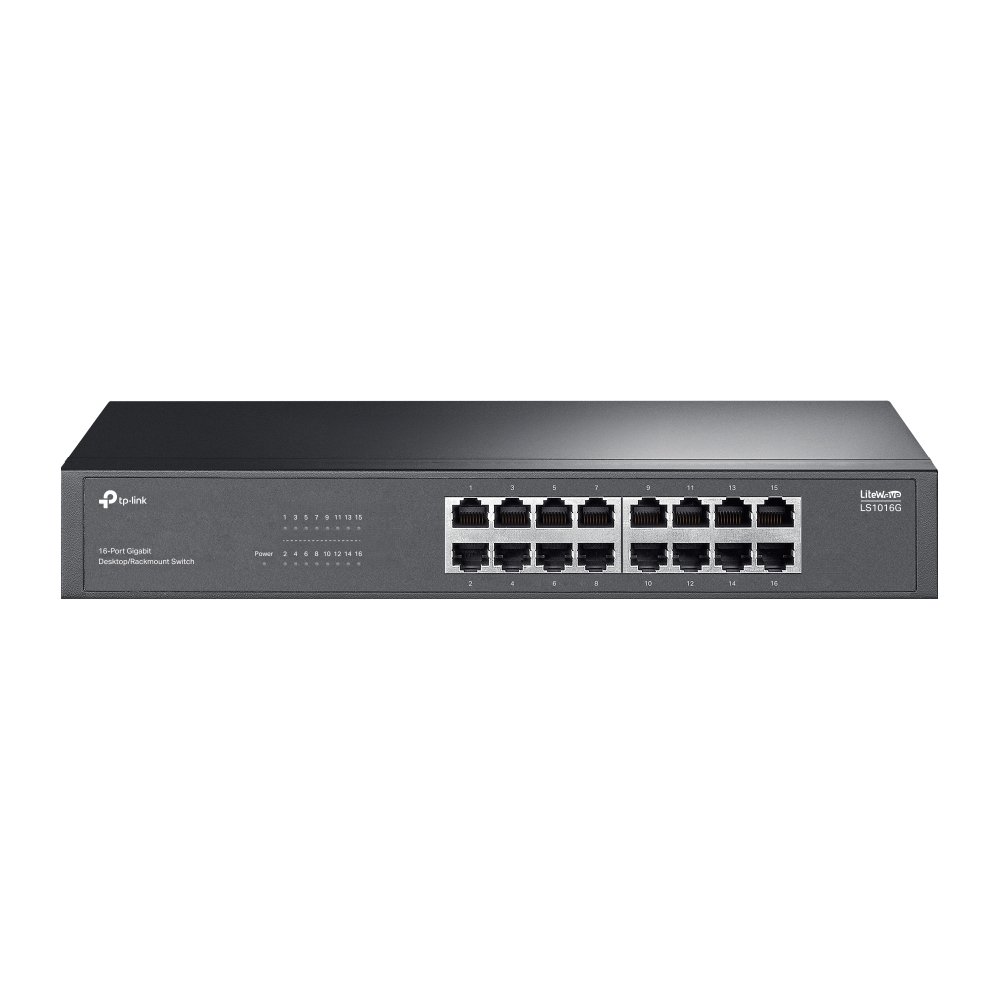

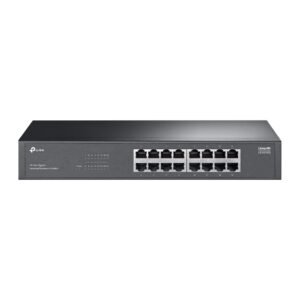

TP-Link LS1016G – 16-Port Gigabit Desktop/Rackmount Switch

TPLINK Logo

Brand:

Switch TP-Link LS1016G

  • 16-Port Gigabit Desktop/Rackmount Switch
  • Normes et protocoles : IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
  • Débit de transfert de paquets : 23.808 Mpps
  • Interface : 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • Alimentation : 100-240V~50/60Hz, 0.3A
  • Dimensions (L × P × H) : 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m) – 1000BASE-T: UTP category…

TP-Link LS1016G – 16-Port Gigabit Desktop/Rackmount Switch. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).

Avantages clés

  • Compatible IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p — prêt pour votre réseau
  • Débits jusqu’à 23.808 Mpps — streaming, gaming et visio sans compromis
  • Connectique 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) — vos appareils branchés en un geste
  • Connectique 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m) – 1000BASE-T: UTP category… — vos appareils branchés en un geste
  • Alimentation : 100-240V~50/60Hz, 0.3A

Caractéristiques techniques

Caractéristiques matérielles

  • Normes et protocoles : IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
  • Interface : 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m) – 1000BASE-T: UTP category 5e or above cable (maximum 100m)
  • Nombre de ventilateurs : Sans ventilateur
  • Alimentation : 100-240V~50/60Hz, 0.3A
  • Dimensions (L × P × H) : 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
  • Consommation max. : 7.2 W (110V/60Hz)
  • Dissipation thermique max. : 24.42 BTU/h (110V/60Hz)

Performances

  • Trames géantes (Jumbo) : 15 KB
  • Méthode de transmission : Store-and-Forward
  • Capacité de commutation : 32 Gbps
  • Débit de transfert de paquets : 23.808 Mpps
  • Table MAC : 8K

Autres

  • Certifications : FCC, CE
  • Environnement : Operating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Applications recommandées

  • Alimenter et connecter les AP, caméras IP et postes de travail
  • Baie et câblage structuré en entreprise
  • Gestion centralisée Omada (modèles manageables)

Dans la boîte

  • 16-Port Gigabit Bureau/Rackmount Switch Câble d’alimentation Guide d’installation Rackmount Kits Pieds adhésifs

Pourquoi choisir TP-Link chez DigiDis ?

TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.

✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h

Référence fabricant : LS1016G

Fiche constructeur : https://www.tp-link.com/en/business-networking/soho-switch-unmanaged/ls1016g/
