Reference: LS105LP

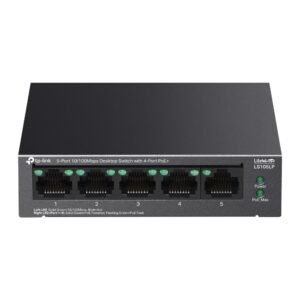

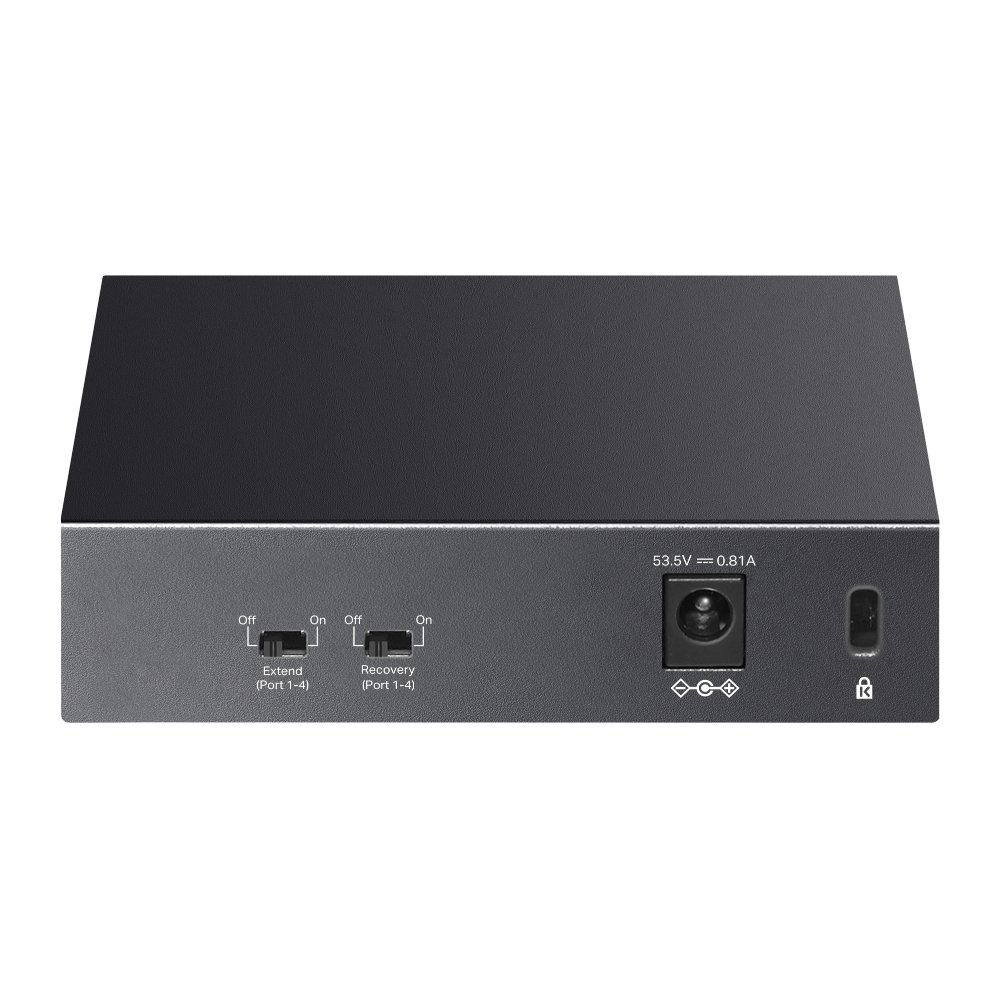

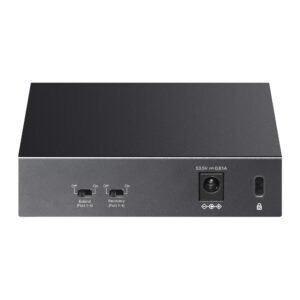

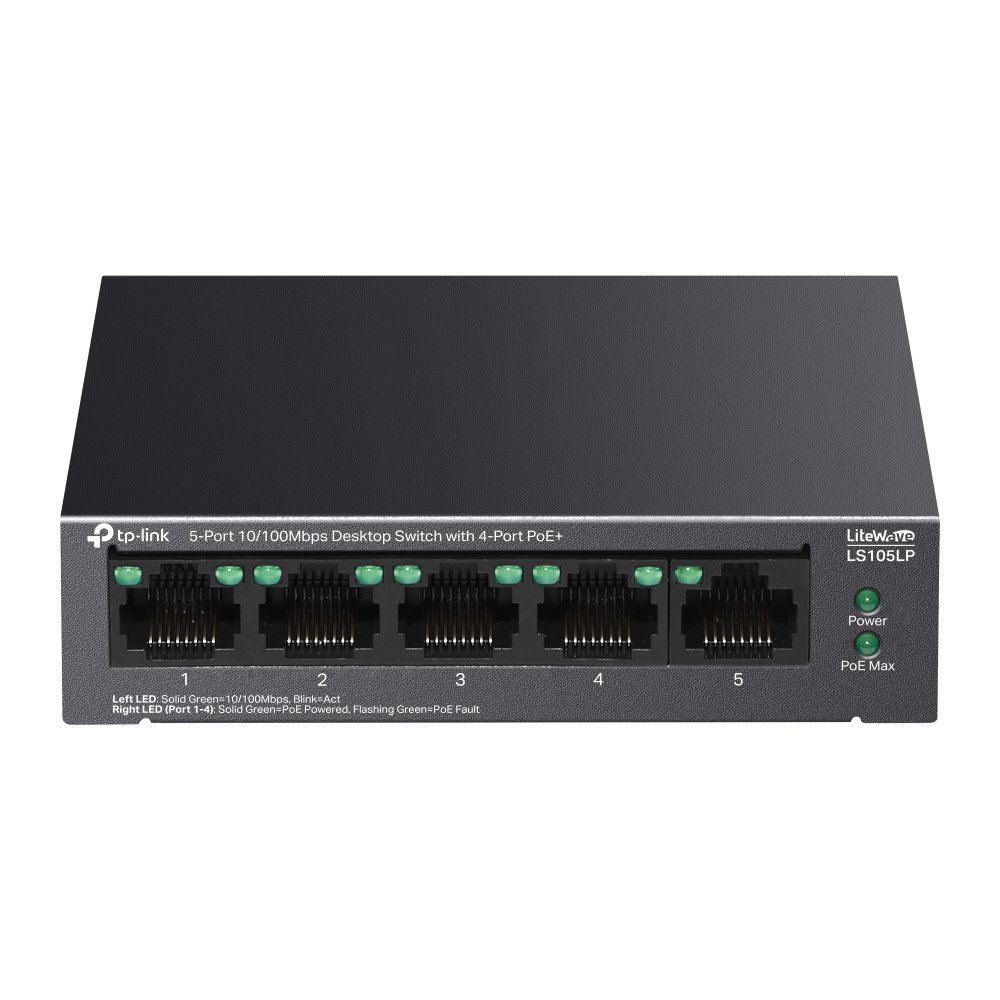

TP-Link LS105LP – 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

TPLINK Logo

Brand:

Switch TP-Link LS105LP

  • 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
  • Débit de transfert de paquets : 0.744 Mpps
  • Interface : – 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) – AUTO Negotiation – AUTO MDI/MDIX
  • Alimentation : adaptateur d’alimentation externe (Output: 53.5VDC / 0.81A)
  • Dimensions (L × P × H) : 3.9×3.9×1.0 in (100×98×25 mm)
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) – 100BASE-TX: UTP category 5, 5e cable (maximum…
  • Nombre de ventilateurs : Sans ventilateur

TP-Link LS105LP – 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).

Avantages clés

  • Débits jusqu’à 0.744 Mpps — streaming, gaming et visio sans compromis
  • Connectique 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) – AUTO Negotiation – AUTO MDI/MDIX — vos appareils branchés en un geste
  • Connectique 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) – 100BASE-TX: UTP category 5, 5e cable (maximum… — vos appareils branchés en un geste
  • Alimentation : adaptateur d’alimentation externe (Output: 53.5VDC / 0.81A)

Caractéristiques techniques

Caractéristiques matérielles

  • Interface : – 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) – AUTO Negotiation – AUTO MDI/MDIX
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) – 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
  • Nombre de ventilateurs : Sans ventilateur
  • Installation : Bureau ou fixation murale
  • Alimentation : adaptateur d’alimentation externe (Output: 53.5VDC / 0.81A)
  • LED : – Power – Link/Act – PoE Status – PoE MAX
  • Ports PoE (RJ45) : – Standard: 802.3 at compliant – PoE Ports: Ports 1–4, jusqu’à 30 W PoE output per port – Power Supply: 41 W
  • Dimensions (L × P × H) : 3.9×3.9×1.0 in (100×98×25 mm)
  • Consommation max. : – 2.40 W (220 V/50 Hz no PD connected) – 46.45 W (220 V/50 Hz with 41 W PD connected)
  • Dissipation thermique max. : – 8.15 BTU/h (220 V/50 Hz no PD connected) – 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)

Performances

  • Trames géantes (Jumbo) : 2 KB
  • Capacité de commutation : 1 Gbps
  • Débit de transfert de paquets : 0.744 Mpps
  • Table MAC : 2K

Fonctions logicielles

  • Fonctions avancées : – Extend mode: Ports 1–4 – PoE Auto Recovery: Ports 1-4 – Compatible With IEEE 802.3af/at Compliant PDs – Mac Address Auto-Learning et Auto-Aging – IEEE 802.3x Flow Control
  • Méthode de transmission : Store et Forward

Autres

  • Certifications : CE, FCC
  • Environnement : – Operating Temperature: 0–40 ℃ (32–104 ℉) – Storage Temperature: -40–70 ℃ (-40–158 ℉) – Operating Humidity: 10–90% RH non-condensing – Storage Humidity: 5–90% RH non-condensing

Applications recommandées

  • Alimenter et connecter les AP, caméras IP et postes de travail
  • Baie et câblage structuré en entreprise
  • Gestion centralisée Omada (modèles manageables)

Dans la boîte

  • LS105LP
  • adaptateur d’alimentation
  • Guide d’installation

Pourquoi choisir TP-Link chez DigiDis ?

TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.

✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h

Référence fabricant : LS105LP

Fiche constructeur : https://www.tp-link.com/en/business-networking/soho-switch-unmanaged/ls105lp/
