Reference: LS110P

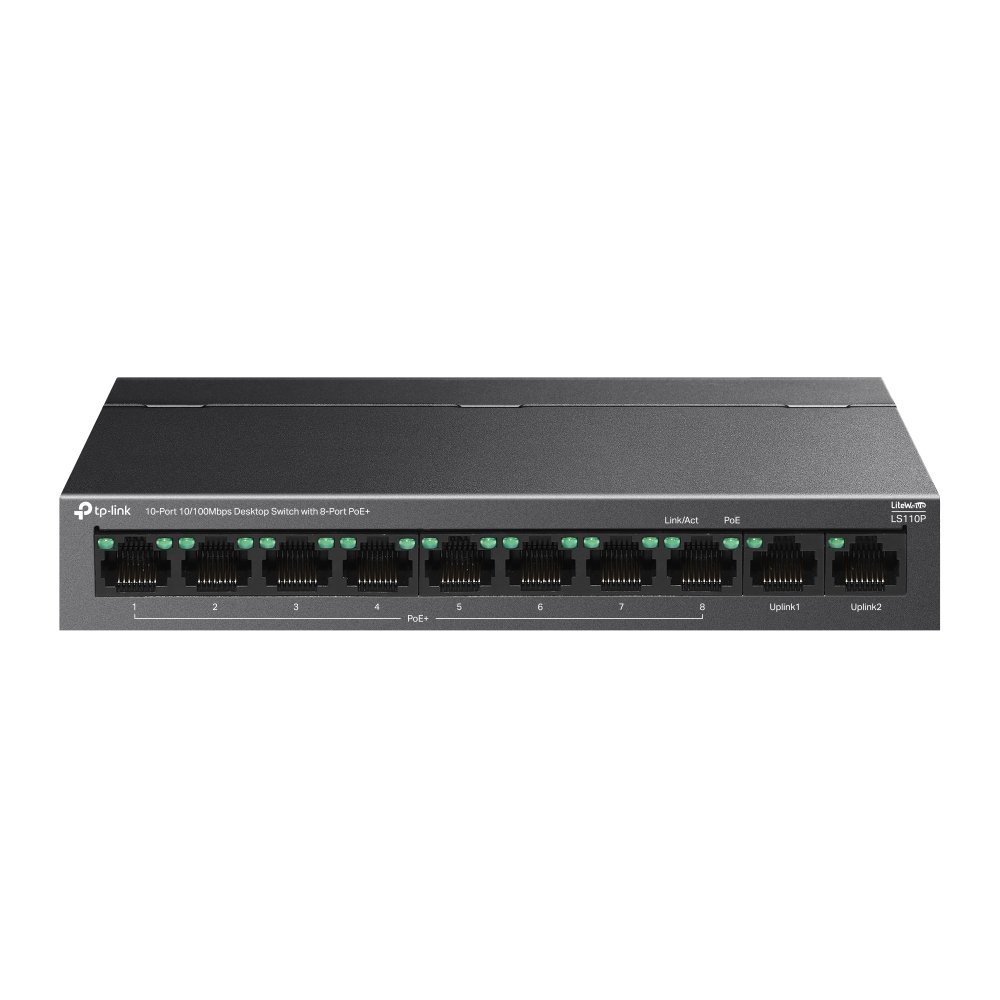

TP-Link LS110P – 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

TPLINK Logo

Brand:

Switch TP-Link LS110P

  • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
  • Normes et protocoles : IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
  • Débit de transfert de paquets : 1.488 Mpps
  • Interface : – 10*10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8) – AUTO Negotiation/AUTO MDI/MDIX
  • Alimentation externe : adaptateur d’alimentation externe (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)
  • Dimensions (L × P × H) : 6.7×3.9×1.1 in (171×98×27 mm)
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m)

TP-Link LS110P – 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).

Avantages clés

  • Compatible IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at — prêt pour votre réseau
  • Débits jusqu’à 1.488 Mpps — streaming, gaming et visio sans compromis
  • Connectique 10*10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8) – AUTO Negotiation/AUTO MDI/MDIX — vos appareils branchés en un geste
  • Connectique 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m) — vos appareils branchés en un geste
  • Alimentation externe : adaptateur d’alimentation externe (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)

Caractéristiques techniques

Caractéristiques matérielles

  • Normes et protocoles : IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
  • Interface : – 10*10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8) – AUTO Negotiation/AUTO MDI/MDIX
  • Support réseau : – 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) – 100BASE-TX: UTP category 5 or above cable (maximum 100m)
  • Nombre de ventilateurs : Sans ventilateur
  • Alimentation externe : adaptateur d’alimentation externe (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)
  • LED : Power, Link/Act, PoE Status
  • Débit de transfert de paquets : 1.488 Mpps
  • Ports PoE (RJ45) : Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 Power Supply: 96 W
  • Dimensions (L × P × H) : 6.7×3.9×1.1 in (171×98×27 mm)
  • Consommation max. : 99.6 W
  • Dissipation thermique max. : 338.64 BTU/h

Performances

  • Mémoire tampon : 768 KB
  • Fonctions avancées : – Extend mode (Ports 1-4/1-8) – Isolation mode (Ports 1-8) – PoE Auto Recovery (Ports 1-8)
  • Trames géantes (Jumbo) : 2 KB
  • Capacité de commutation : 2 Gbps

Fonctions logicielles

  • Table MAC : 2K
  • Méthode de transmission : Store-And-Forward

Autres

  • Certifications : CE, FCC
  • Environnement : – Operating Temperature: 0°C to 40 °C (32 °F to 104°F ) – Storage Temperature: -40 °C to 70 °C (-40 °F to 158°F ) – Operating Humidity: 10% to 90% non-condensing – Storage Humidity: 5% to 90% non-condensing

Applications recommandées

  • Alimenter et connecter les AP, caméras IP et postes de travail
  • Baie et câblage structuré en entreprise
  • Gestion centralisée Omada (modèles manageables)

Dans la boîte

  • Switch, adaptateur d’alimentation, Pieds adhésifs, Guide d’installation

Pourquoi choisir TP-Link chez DigiDis ?

TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.

✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h

Référence fabricant : LS110P

Fiche constructeur : https://www.tp-link.com/en/business-networking/soho-switch-unmanaged/ls110p/
