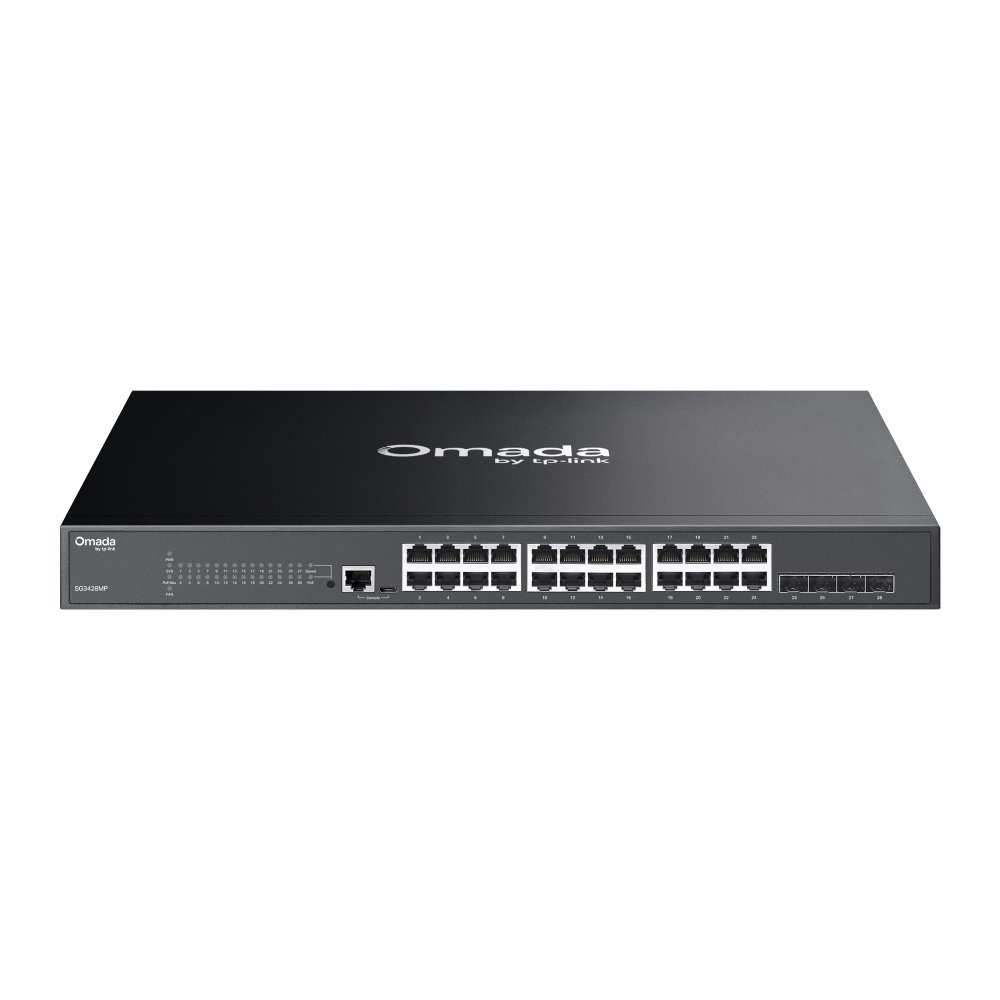

TP-Link SG3428MP – Switch JetStream administrable 28 ports Gigabit L2 avec 24 ports PoE+. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).
Avantages clés
- Débits jusqu’à 41.66 Mpps — streaming, gaming et visio sans compromis
- Connectique 24× 10/100/1000 Mbps RJ45 PoE+ Ports – 4× Gigabit SFP Slots – 1× RJ45 Console Port – 1× Micro-USB Console Port — vos appareils branchés en un geste
- Sécurité IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries – IPv6-MAC-Port Binding – 512 Entries… — protégez vos données et vos échanges
- Alimentation : 100-240 V~50/60 Hz
- Application Omada : Oui. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller ou Omada Software Controller.
Caractéristiques techniques
Caractéristiques matérielles
- Interface : – 24× 10/100/1000 Mbps RJ45 PoE+ Ports – 4× Gigabit SFP Slots – 1× RJ45 Console Port – 1× Micro-USB Console Port
- Nombre de ventilateurs : 2
- Verrou physique : Oui
- Alimentation : 100-240 V~50/60 Hz
- Ports PoE (RJ45) : – Standard: 802.3at/af compliant – PoE+ Ports: 24 Ports (jusqu’à 30 W PoE Output per Port) – Power Budget: 384 W* – Fast PoE & Perpetual PoE
- Dimensions (L × P × H) : 17.3×13.0×1.7 in (440×330×44 mm)
- Protection contre les surtensions : ±6 kV
- Fixation : Montable en rack
- Consommation max. : – 478.6W (110 V/60 Hz @ 25 °C) (with 384 W PD connected) – 463.7 W (220 V/50 Hz @ 25 °C) (with 384 W PD connected)
- Dissipation thermique max. : – 1632.03 BTU/hr (110 V/60 Hz @ 25 °C) (with 384 W PD connected) – 1581.11 BTU/hr (220 V/50 Hz @ 25 °C) (with 384 W PD connected)
Performances
- Mémoire tampon : 12 Mbit
- Trames géantes (Jumbo) : 9 KB
- Capacité de commutation : 56 Gbps
- Débit de transfert de paquets : 41.66 Mpps
- Table MAC : 16K
Fonctions logicielles
- Qualité de service (QoS) : – 8 priority queues – 802.1p CoS/DSCP priority – Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR – Bandwidth Control: Port/Flow based Rating Limiting – Smoother Performance – Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
- Fonctions L2 et L2+ : – 128 IP Interfaces: Support IPv4/IPv6 Interface – Static Routing: 48 IPv4/IPv6 Static Routes – Static ARP: 128 static entries – 512 ARP Entries – Proxy ARP – Gratuitous ARP – serveur DHCP – DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay – DHCP L2 Relay – Link Aggregation – Spanning Tree Protocol – Loopback Detection – 802.3x Flow Control – Mirroring – Device Link Detect Protocol (DLDP)
- Multidiffusion L2 : – Supports 4000 (IPv4, IPv6) IGMP groups – IGMP Snooping – IGMP Authentication – Multicast VLAN Registration (MVR) – MLD Snooping – Multicast Filtering: 256 profiles et 16 entries per profile
- Fonctions avancées : – Automatic Device Discovery – Batch Configuration – Batch Firmware Upgrading – Intelligent Network Monitoring – Abnormal Event Warnings – Unified Configuration – Reboot Schedule ISP Features **: – L2PT (Layer 2 Protocol Tunneling) – Device Link Detect Protocol (DLDP) – PPPoE ID Insertion – ERPS – 802.3ah Ethernet Link OAM – DDM – sFlow
- VLAN : – VLAN Group: Max 4K VLAN Groups – 802.1q Tagged VLAN – MAC VLAN: 30 Entries – Protocol VLAN: Protocol Template 16, Protocol VLAN 16 – Private VLAN – GVRP – VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ – Voice VLAN
Applications recommandées
- Alimenter et connecter les AP, caméras IP et postes de travail
- Baie et câblage structuré en entreprise
- Gestion centralisée Omada (modèles manageables)
Dans la boîte
- SG3428MP Switch
- Câble d’alimentation
- Console Cable
- Supports de fixation
- Pieds adhésifs
- Vis
- Guide d’installation
Pourquoi choisir TP-Link chez DigiDis ?
TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.
✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h
Référence fabricant : SG3428MP
Fiche constructeur : https://www.tp-link.com/en/business-networking/omada-switch-access/sg3428mp/
