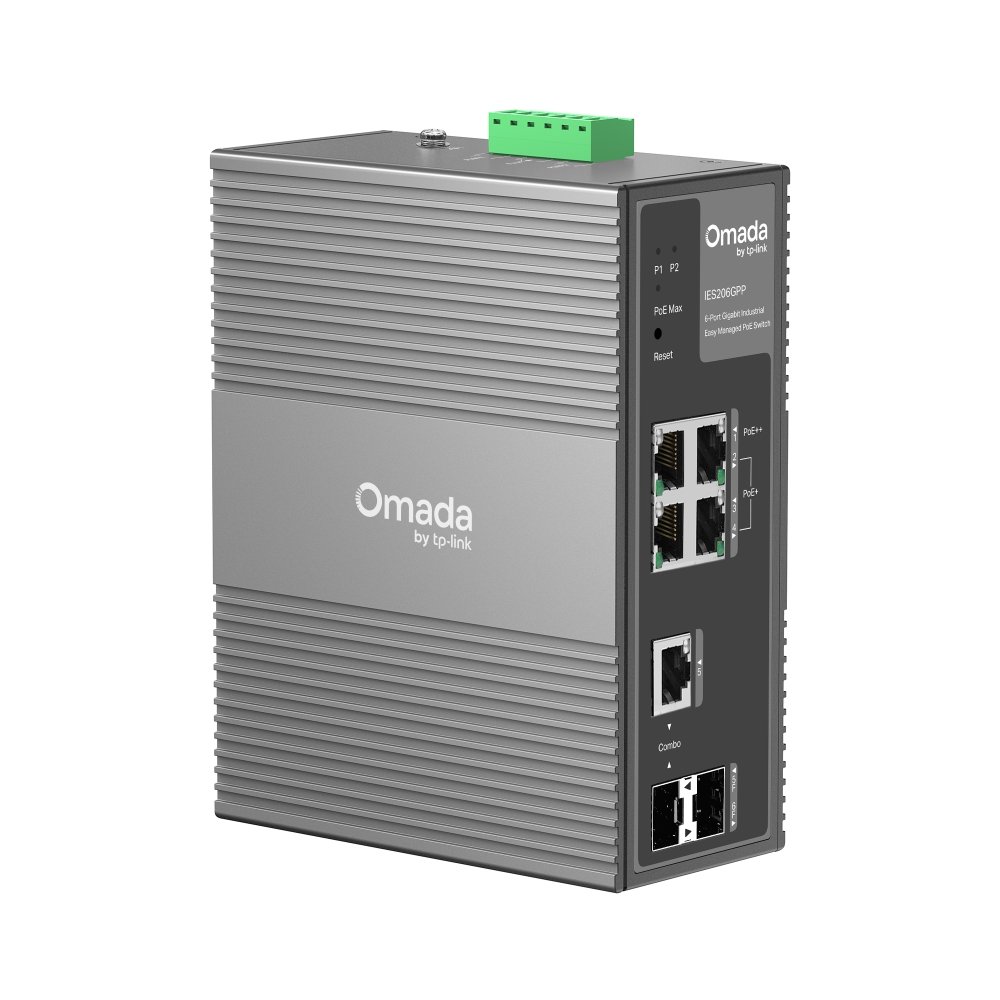

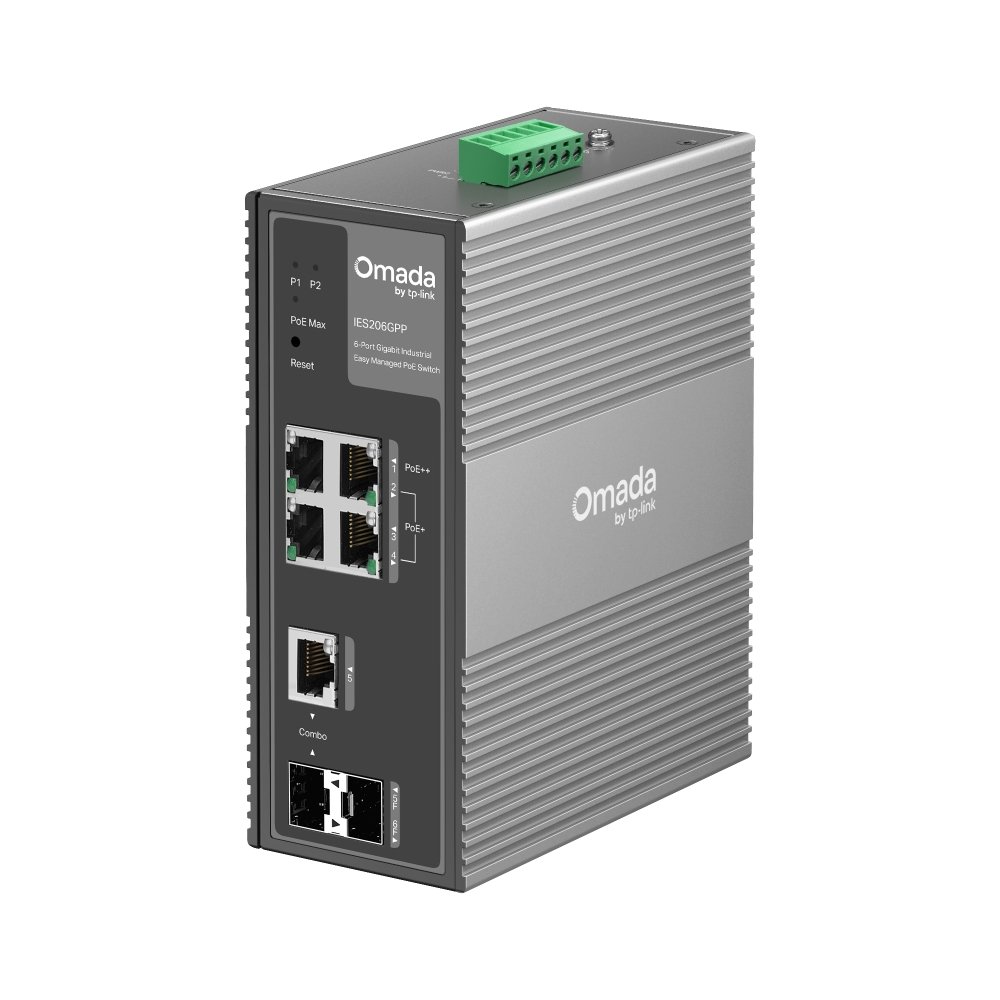

TP-Link IES206GPP – Switch industriel facile à gérer Omada 6 ports Gigabit avec 3 ports PoE+ et 1 port PoE++. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).
Avantages clés
- Connectique 1× 10/100/1000 Mbps PoE++ RJ45 Ports – 3× 10/100/1000 Mbps PoE+ RJ45 Ports – 1× Gigabit SFP/RJ45 Combo Slot – 1× Gigabit SFP Slot… — vos appareils branchés en un geste
- Trafic optimisé (802.1p DSCP Priority – 8 Priority Queues – Priority Schedule mode – WRR (Weighted Round Robin) – Queue Weight Config – Bandwidth Control…) — réseau fluide même en charge
- Alimentation : 12-57V 1+1 Redundant DC Power Input
- Application Omada : Oui. Nécessite l’utilisation de Omada Hardware Controller, Omada Cloud-Based Controller ou Omada Software Controller.
Caractéristiques techniques
Caractéristiques matérielles
- Interface : – 1× 10/100/1000 Mbps PoE++ RJ45 Ports – 3× 10/100/1000 Mbps PoE+ RJ45 Ports – 1× Gigabit SFP/RJ45 Combo Slot – 1× Gigabit SFP Slot – Auto-Negotiation/Auto MDI/MDIX
- Nombre de ventilateurs : Sans ventilateur
- Installation : – DIN-rail mounting – Wall mounting

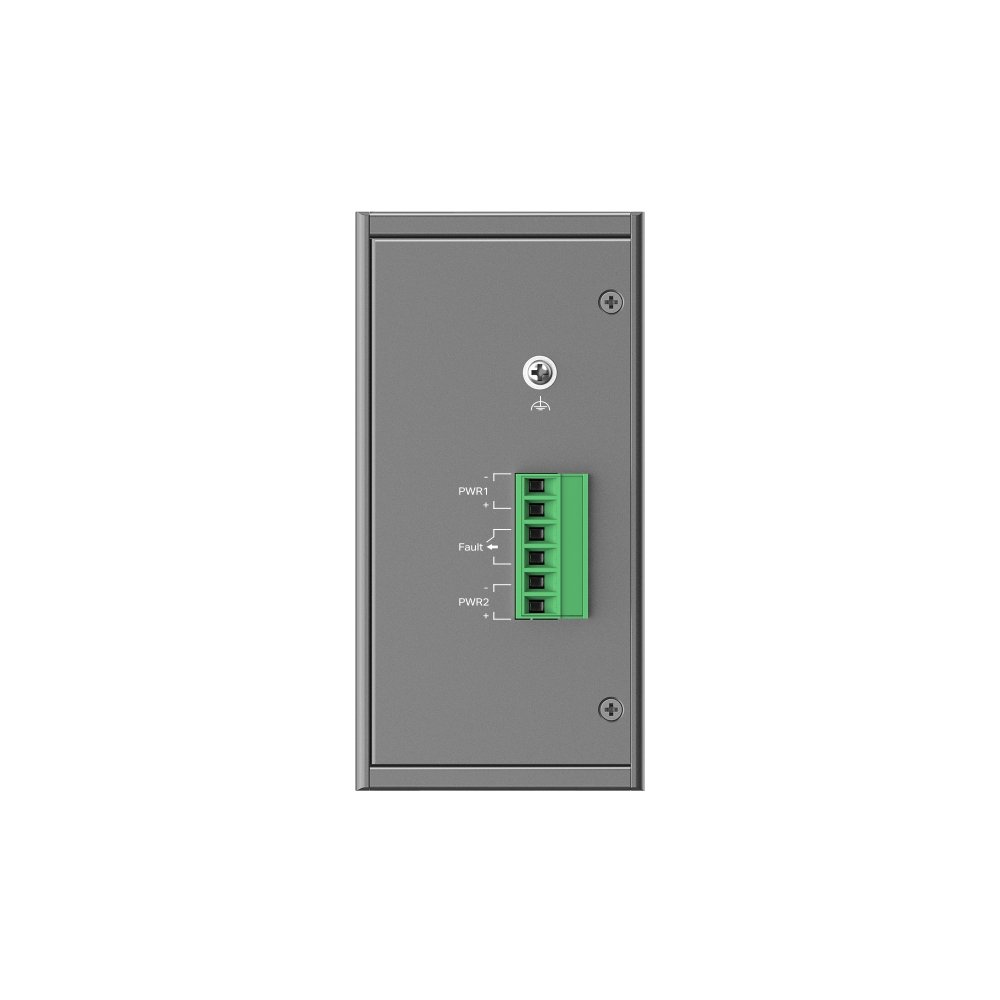

- Alimentation : 12-57V 1+1 Redundant DC Power Input
- Ports PoE (RJ45) : – Standard: 802.3af/at/bt compliant – PoE++ Ports (802.3af/at/bt PoE): 1 Port, jusqu’à 60W per port – PoE+ Ports (802.3af/at PoE): 3 Ports, jusqu’à 30W per port – PoE Budget: – 60W (Input: 12V / 7.0A – 21V / 3.5A)) – 120W (Input: 21V / 6.5A – 57V / 2.3A) – Fast PoE – Perpetual PoE
- Dimensions (LxPxH) : 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
- Protection contre les surtensions : – ±6 kV in common mode for Ethernet ports – ±4 kV in common mode for DC power input ports
Performances
- Mémoire tampon des paquets : 4 Mbit
- Trame Géante : 15 KB
- Capacité de commutation : 12 Gbps
- Taux de transfert de paquets : 8.93 Mpps
- Tableau d’adresses MAC : 8K
Caractéristiques logicielles
- Qualité de Service QoS : – 802.1p DSCP Priority – 8 Priority Queues – Priority Schedule mode – WRR (Weighted Round Robin) – Queue Weight Config – Bandwidth Control – Port-Based Rate Limit – Storm Control – Multiple Control modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control
- Fonctions N2 : – Link Aggregation – Static Link Aggregation – Up to 2 aggregation groups et jusqu’à 4 ports per group – Loopback Detection – Flow Control – 802.3x Flow Control – Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both – Port Statistics – Port Mirror Status – Traffic Statistics – 802.1ab LLDP – Spanning Tree – STP (802.1d) – RSTP (802.1w)
- Multidiffusion N2 : – IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
- VLAN : – MTU VLAN – Port-Based VLAN – 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
- Méthode de transmission : Store-And-Forward
Administration
- Application Omada : Oui. Nécessite l’utilisation de Omada Hardware Controller, Omada Cloud-Based Controller ou Omada Software Controller.
- Administration Centralisée : – Omada Cloud-Based Controller – Omada Hardware Controller – Omada Software Controller
- Accès Cloud : Oui. Nécessite l’utilisation de Omada Hardware Controller, Omada Cloud-Based Controller ou Omada Software Controller.
Applications recommandées
- Alimenter et connecter les AP, caméras IP et postes de travail
- Baie et câblage structuré en entreprise
- Gestion centralisée Omada (modèles manageables)
Dans la boîte
- IES206GPP
- DIN-Rail Support de fixation
- Wall-fixation Plates
- Guide d’installation
Pourquoi choisir TP-Link chez DigiDis ?
TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.
✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h
Référence fabricant : IES206GPP
