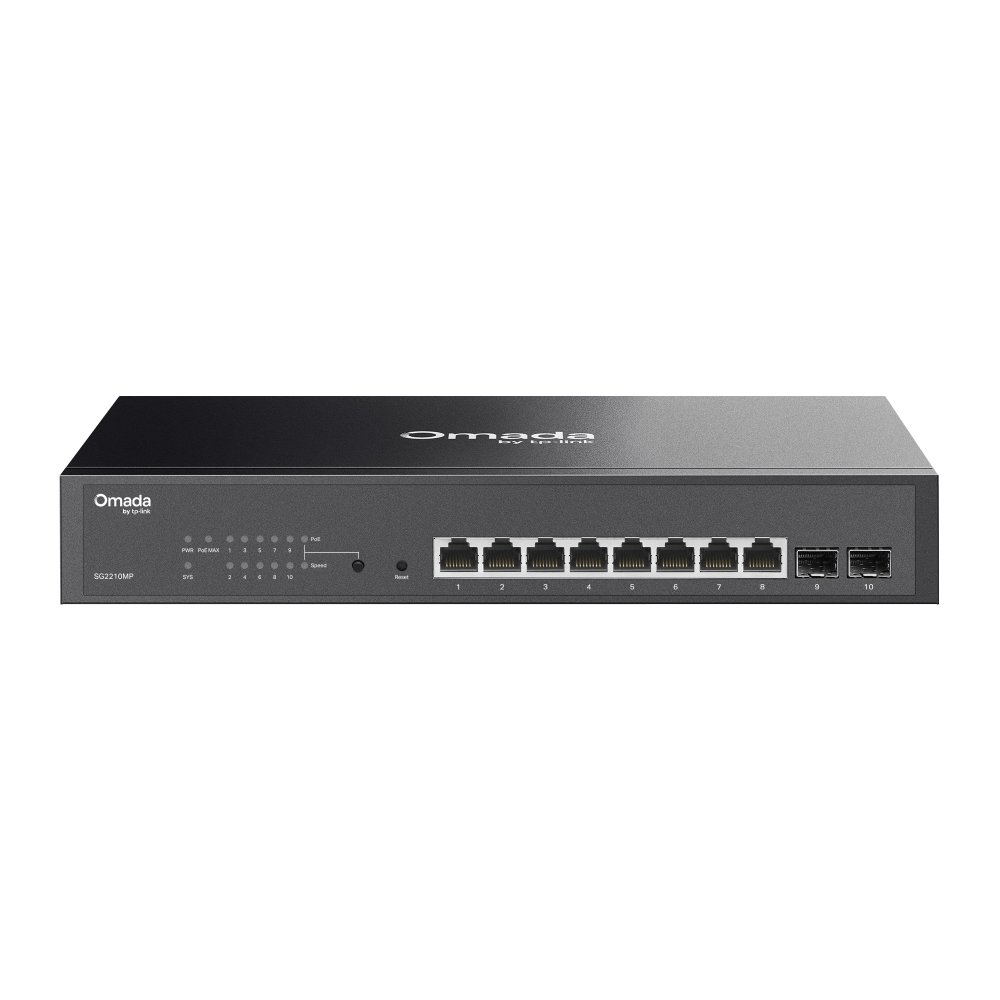

TP-Link SG2210MP – Omada 10-Port Gigabit Smart Switch with 8-Port PoE+. Conçu pour les particuliers et professionnels au Maroc, ce switch profite de la technologie TP-Link et du support local DigiDis (livraison partout au Maroc, garantie constructeur et assistance technique).
Avantages clés
- Débits jusqu’à 14.88 Mpps — streaming, gaming et visio sans compromis
- Connectique 8× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) – 2× 100/1000 Mbps SFP Slots — vos appareils branchés en un geste
- Sécurité AAA – 802.1X – Port-based authentication – MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 – MAB – Guest… — protégez vos données et vos échanges
- Alimentation : 100-240V AC, 50/60Hz
- Application Omada : Oui. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller ou Omada Software Controller.
Caractéristiques techniques
Caractéristiques matérielles
- Interface : – 8× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) – 2× 100/1000 Mbps SFP Slots
- Nombre de ventilateurs : Sans ventilateur Design
- Verrou physique : Oui
- Alimentation : 100-240V AC, 50/60Hz
- Ports PoE (RJ45) : – Standard: 802.3at/af compliant – PoE+ Ports: 8 Ports – PoE Power Budget: 150 W* – Fast PoE & Perpetual PoE
- Dimensions (L × P × H) : 11.6×7.1×1.7 in (294×180×44 mm)
- Protection contre les surtensions : ±6 kV
- Fixation : Rackmount/Bureau
- Consommation max. : – 170.5 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected) – 175.6 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
- Dissipation thermique max. : – 579.84 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected) – 597.04 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
Performances
- Mémoire tampon : 4.1 Mbit
- Trames géantes (Jumbo) : 9 KB
- Capacité de commutation : 20 Gbps
- Débit de transfert de paquets : 14.88 Mpps
- Table MAC : 8K
Fonctions logicielles
- Qualité de service (QoS) : – 802.1p CoS/DSCP priority – 8 priority queues – Priority Schedule mode – SP (Strict Priority) – WRR (Weighted Round Robin) – Queue Weight Config – Bandwidth Control – Port/Flow based Rating Limit – Smoother Performance – Storm Control – Multiple Control modes(kbps/ratio) – Broadcast/Multicast/Unknown-Unicast Control
- Fonctions L2 et L2+ : – 32 IPv4/IPv6 Interfaces – Static Routing – 32 IPv4/IPv6 Static Routes – serveur DHCP – DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay – DHCP L2 Relay – Static ARP – Proxy ARP – Gratuitous ARP – Link Aggregation – Spanning Tree Protocol – Loopback Detection – 802.3x Flow Control – Mirroring – Device Link Detect Protocol (DLDP) – 802.1ab LLDP/ LLDP-MED
- Multidiffusion L2 : – Supports 511 (IPv4, IPv6) IGMP groups – IGMP Snooping – Multicast VLAN Registration (MVR) – Multicast Filtering – Multicast Listener Discovery (MLD) Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast (256 profiles et 16 entries per profile)
- Fonctions avancées : – Automatic Device Discovery – Batch Configuration – Batch Firmware Upgrading – Intelligent Network Monitoring – Abnormal Event Warnings – Unified Configuration – Reboot Schedule
- VLAN : – VLAN Group – Max. 4K VLAN Groups – 802.1Q tag VLAN – MAC VLAN: 12 Entries – Protocol VLAN – GVRP – Voice VLAN
Applications recommandées
- Alimenter et connecter les AP, caméras IP et postes de travail
- Baie et câblage structuré en entreprise
- Gestion centralisée Omada (modèles manageables)
Dans la boîte
- SG2210MP Switch
- Câble d’alimentation
- Supports de fixation
- Pattes de fixation
- Vis
- Guide d’installation
Pourquoi choisir TP-Link chez DigiDis ?
TP-Link est le leader mondial des équipements réseau : fiabilité, rapport qualité-prix et large compatibilité. Chez DigiDis, vous profitez de la livraison rapide partout au Maroc (Casablanca, Rabat, Marrakech, Tanger, Agadir…), de la garantie constructeur officielle et d’un support technique pour vos installations.
✅ Livraison rapide partout au Maroc
✅ Garantie constructeur officielle TP-Link
✅ Support technique et assistance configuration
✅ Stock disponible – Expédition sous 24-48h
Référence fabricant : SG2210MP
Fiche constructeur : https://www.tp-link.com/en/business-networking/omada-switch-access/sg2210mp/
